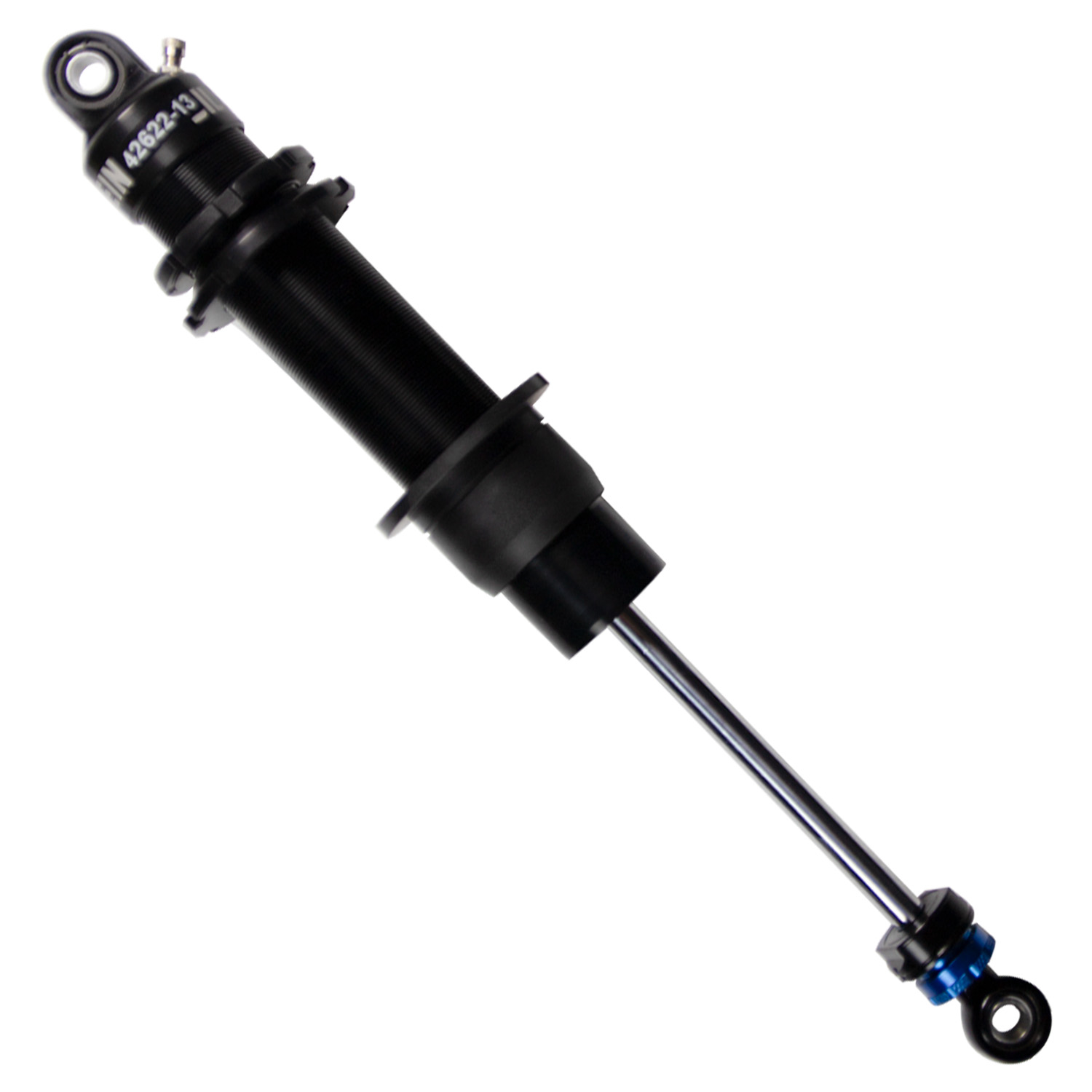

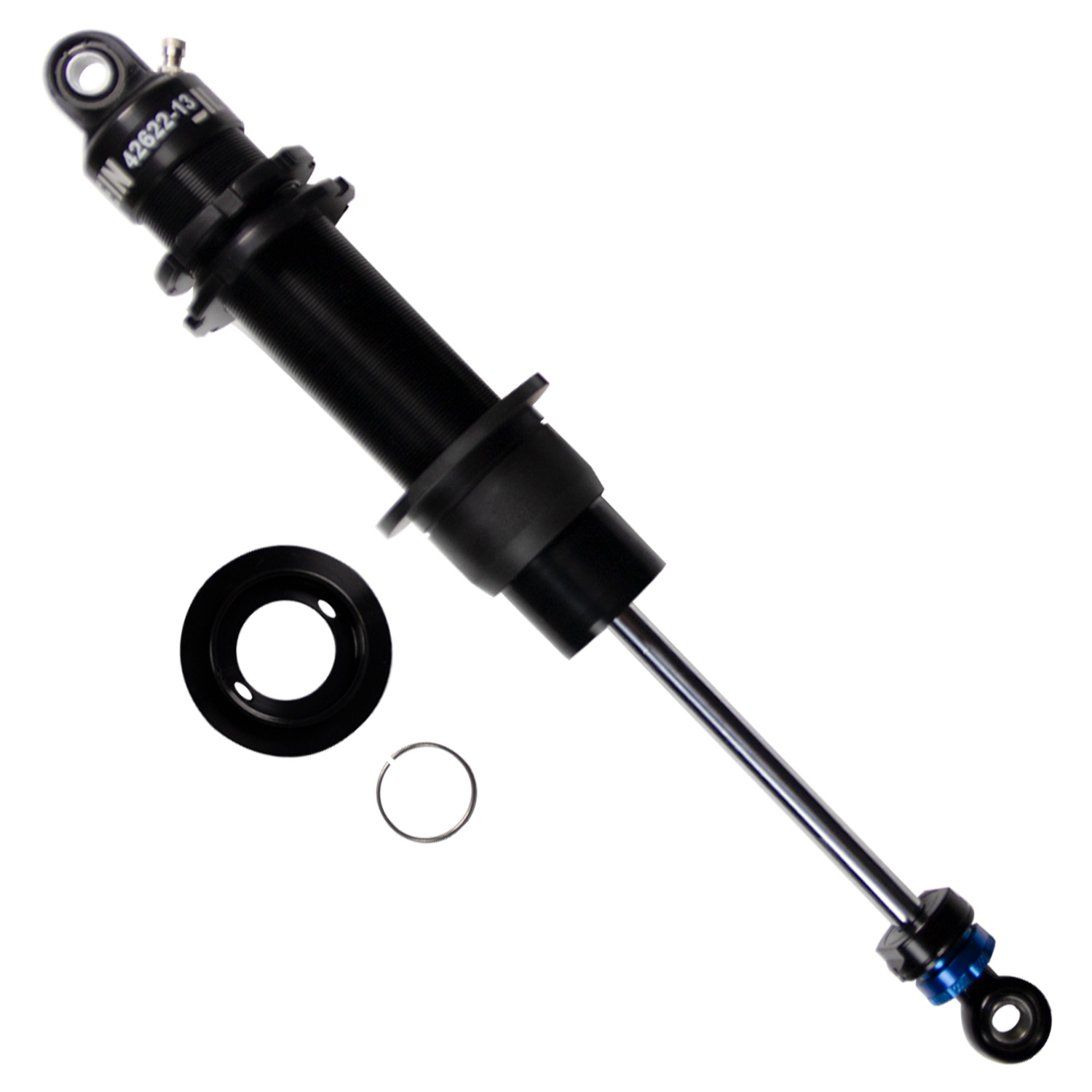

Suspension Shock Absorber AS2 BIL1 5th Coil 1-way adj Monotube AS2 Series Bilstein

Bilstein AS2 Series shock absorbers are designed for motorsports applications and provide the user with the option to rebuild them. The modular aluminum design is offered in non-, single and double adjustable configurations which provide superior on-vehicle tuning capabilities.

The threaded body provides precise height adjustments for coilover setups and dissipates heat quickly.

The hard anodized coating reduces internal friction and improves strength and durability (pistons, piston bands and heims are sold separately to allow for a variety of combinations).

AS2 Series shock absorbers are ideal for racers demanding a lightweight design with upgrade capability.

Details:

• Series: AS2 Series
• Internal Design:Monotube
• Lower Mount Type: 1/2in teflon heim
• Upper Mount Type: 1/2in teflon heim
• Finish: Clear Anodized
• Adjustable: Single Adjustable - Rebound
• Body Design: Threaded Body Screw Top (Coilover)
• Collapsed Length Inch: 13.21
• Body Material: Aluminum
• Extended Length Inch: 19.4
• Boot Included:No
• Pistion Diameter: 46mm
• Pistion Type: Linear
• Shaft Diameter: 14mm
• Stroke Travel Length In: 6.19
• Stroke Travel Length In: 157.2
• Notes: AS2, BIL1 5th Coil 1-way adj
• Warranty: Limited 90 Day Warranty
