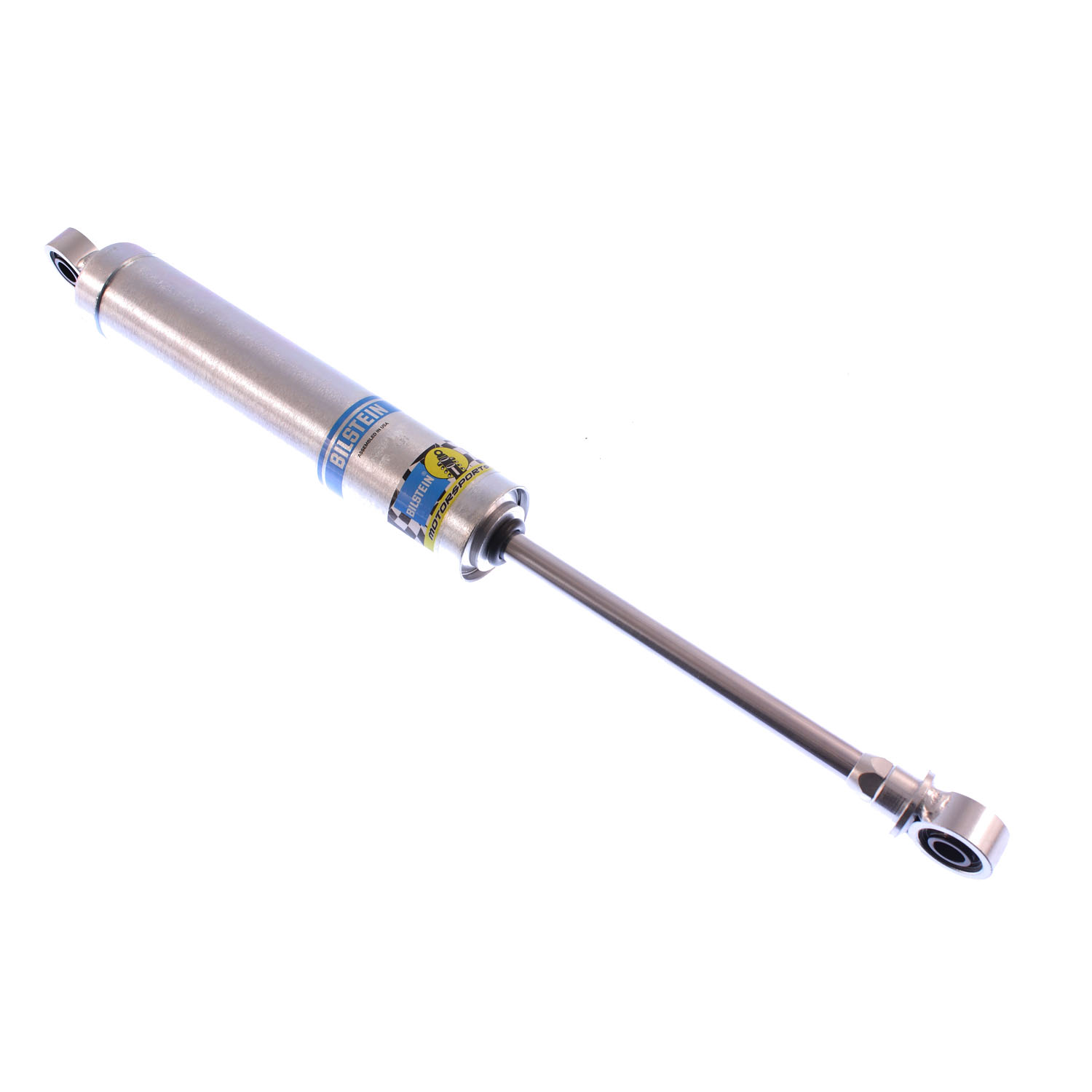

Suspension Shock Absorber SZ/SL 9 Inch Non Adjustable Digressive C15-R2 Monotube Zinc Plated Smooth Body (Non-Coilover) SZ Series Bilstein

Bilstein SZ Series shock absorbers feature a 46mm piston, steel construction and smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths and standard Digressive valve settings that utilize proprietary spring steel valve discs and can be converted to a coilover design (kit sold separately).

SZ Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.

Details:

• Series: SZ Series
• Internal Design:Monotube
• Lower Mount Type: 1/2in Heim
• Upper Mount Type: 1/2in Heim
• Finish: Zinc Plated
• Adjustable: Non-Adjustable
• Body Design: Smooth Body (Non-coilover)
• Collapsed Length Inch: 14.88
• Body Material: Steel
• Compression at 10 s:725
• Extended Length Inch: 23.52
• Boot Included:No
• Pistion Diameter: 46mm
• Pistion Type: Digressive
• Rebound at 10in/s: 125
• Shaft Diameter: 14mm
• Stroke Travel Length In: 8.64
• Stroke Travel Length In: 219.5
• Warranty: 90 Day Warranty
